Description

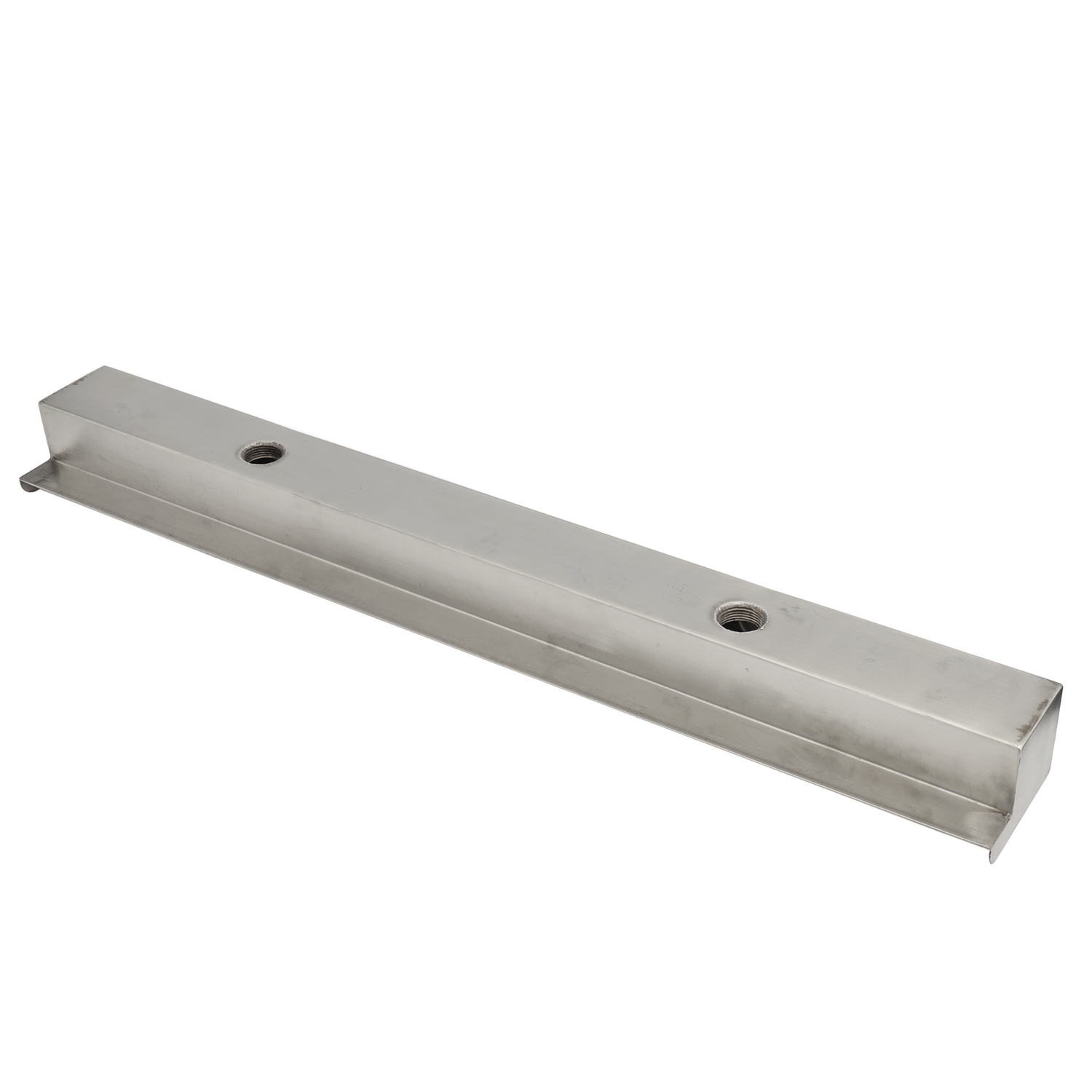

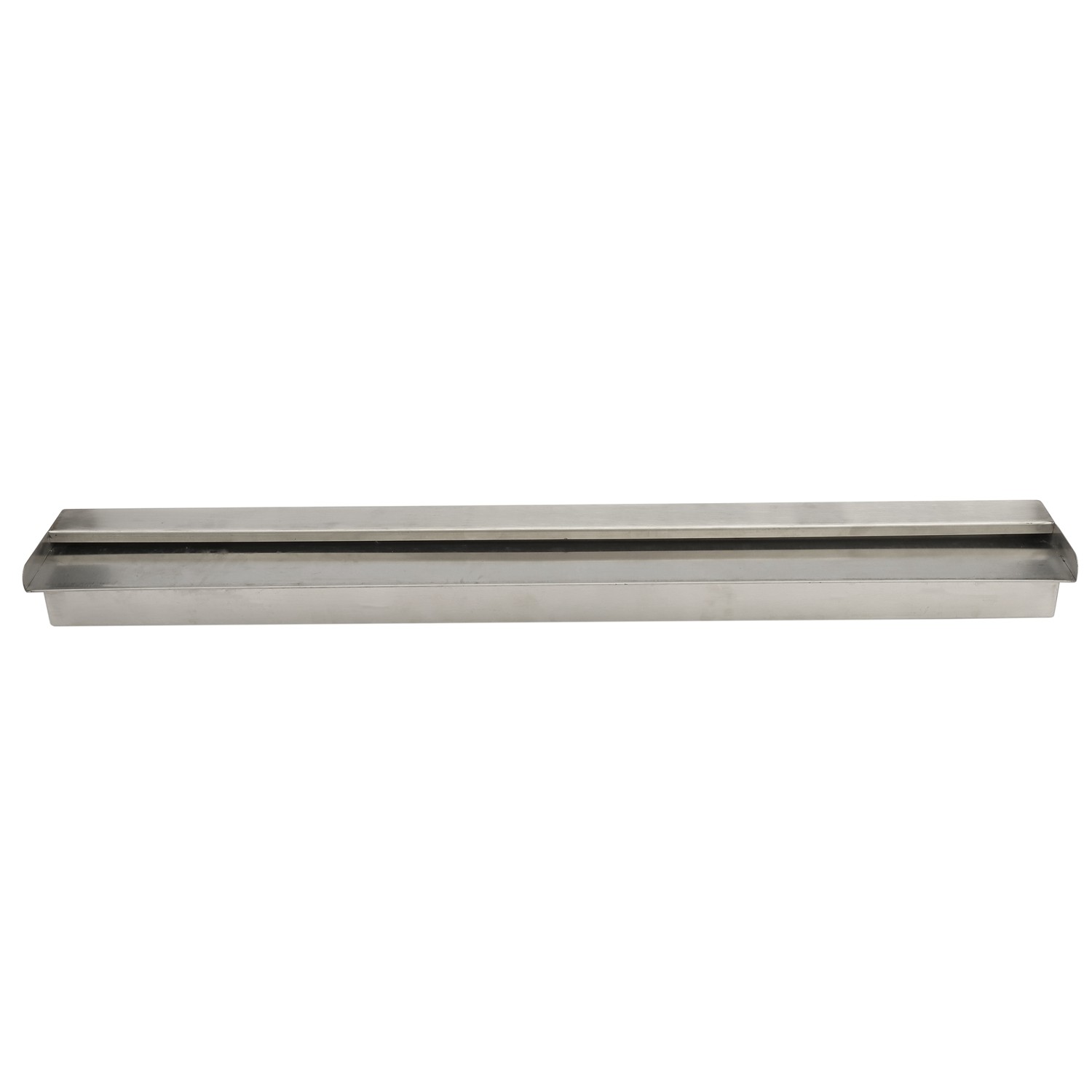

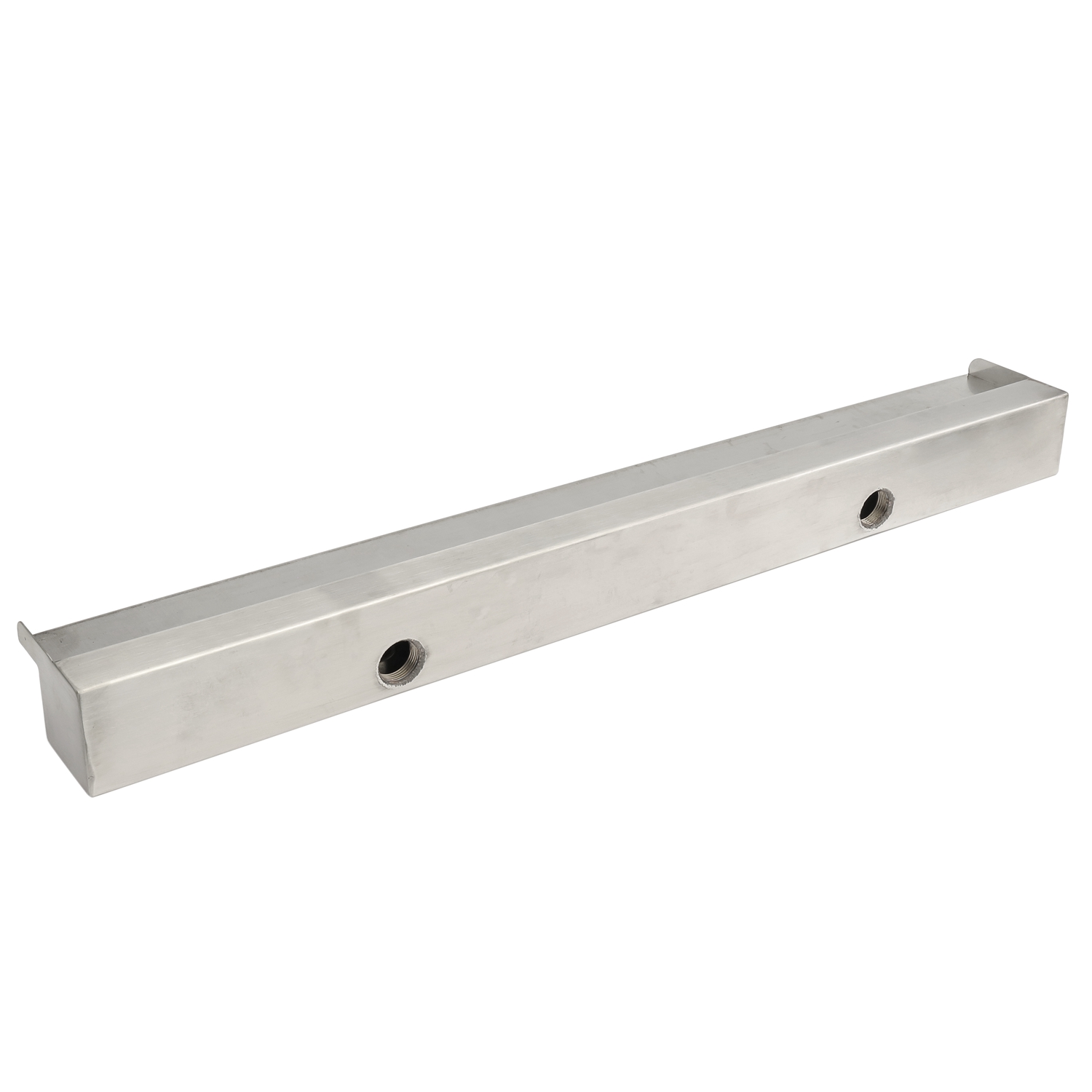

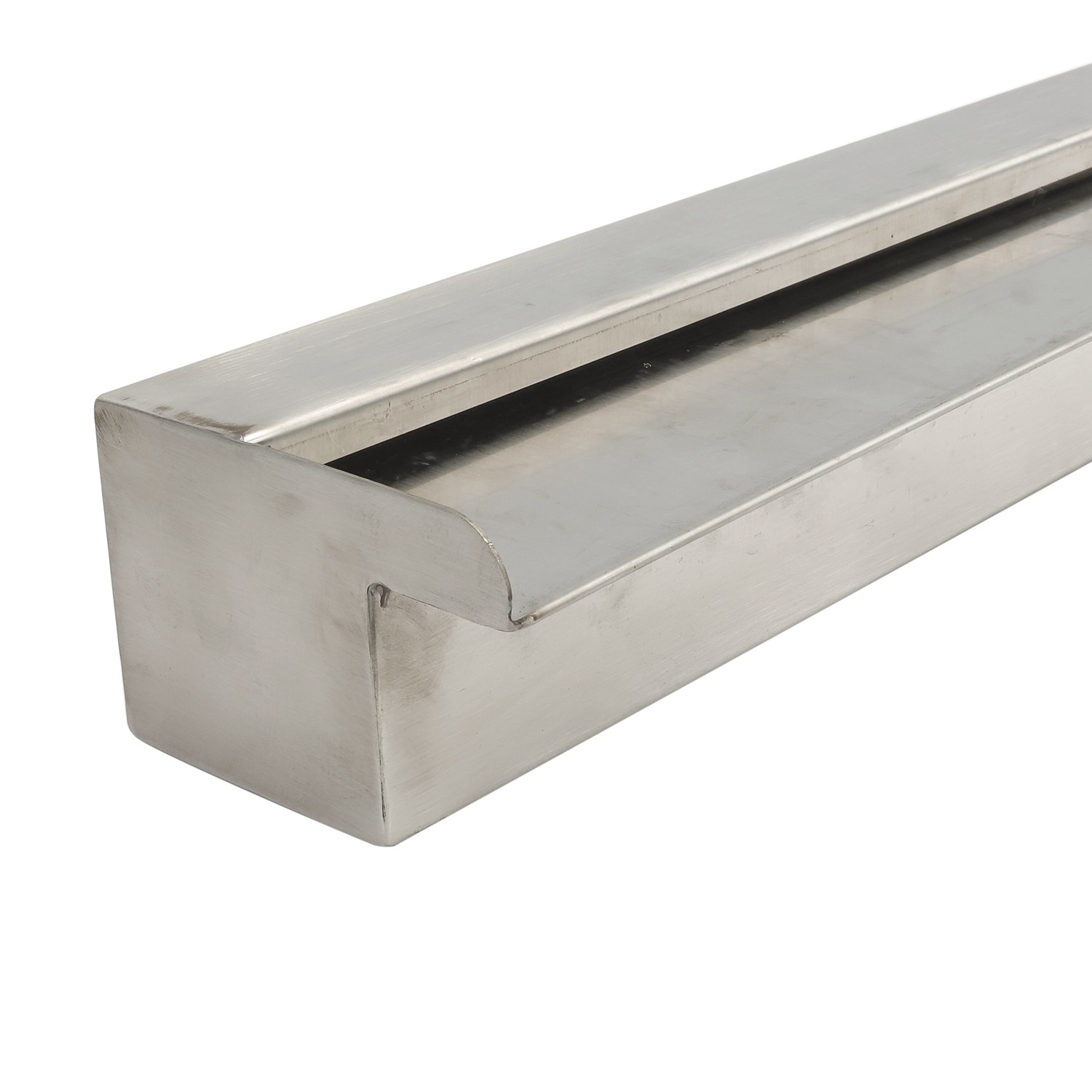

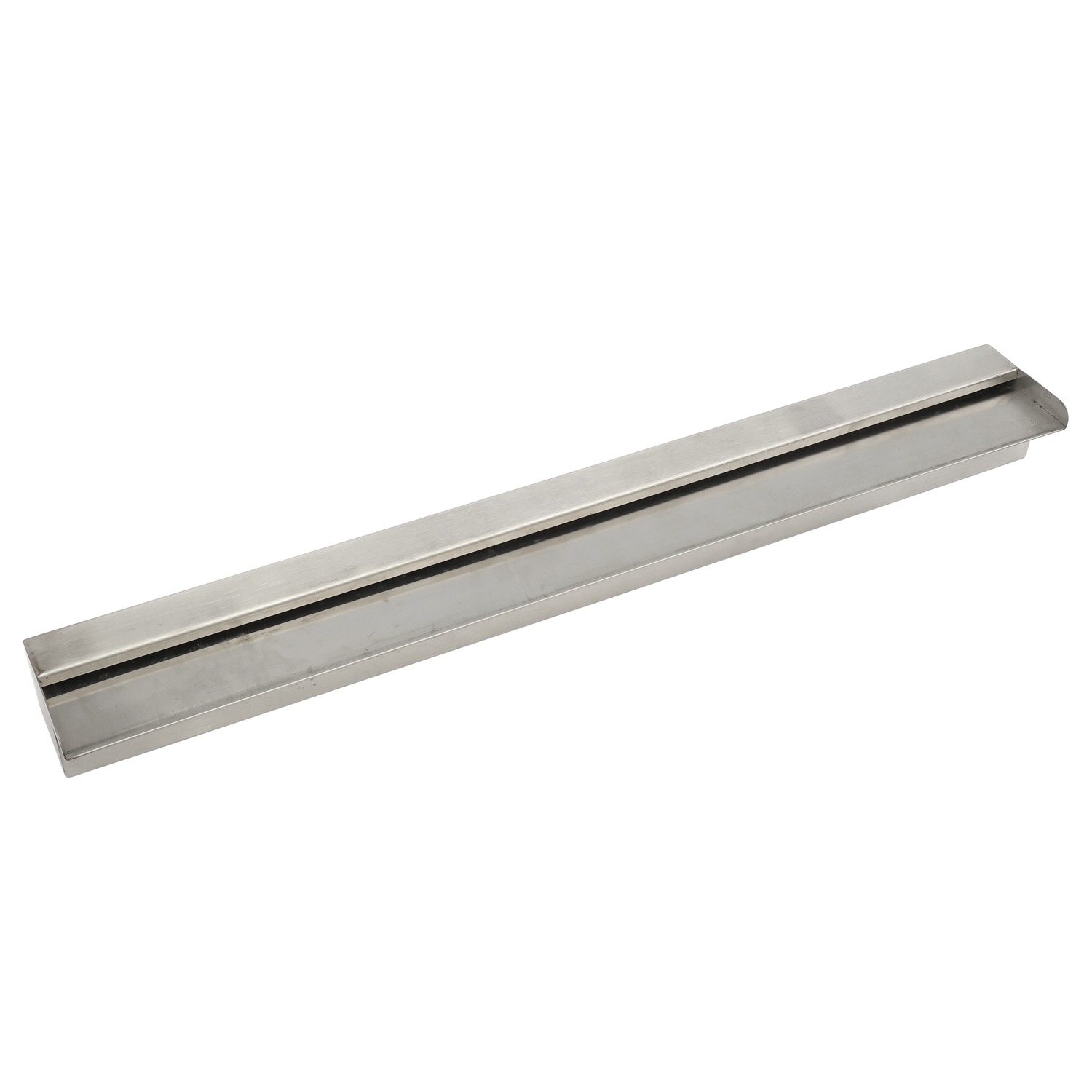

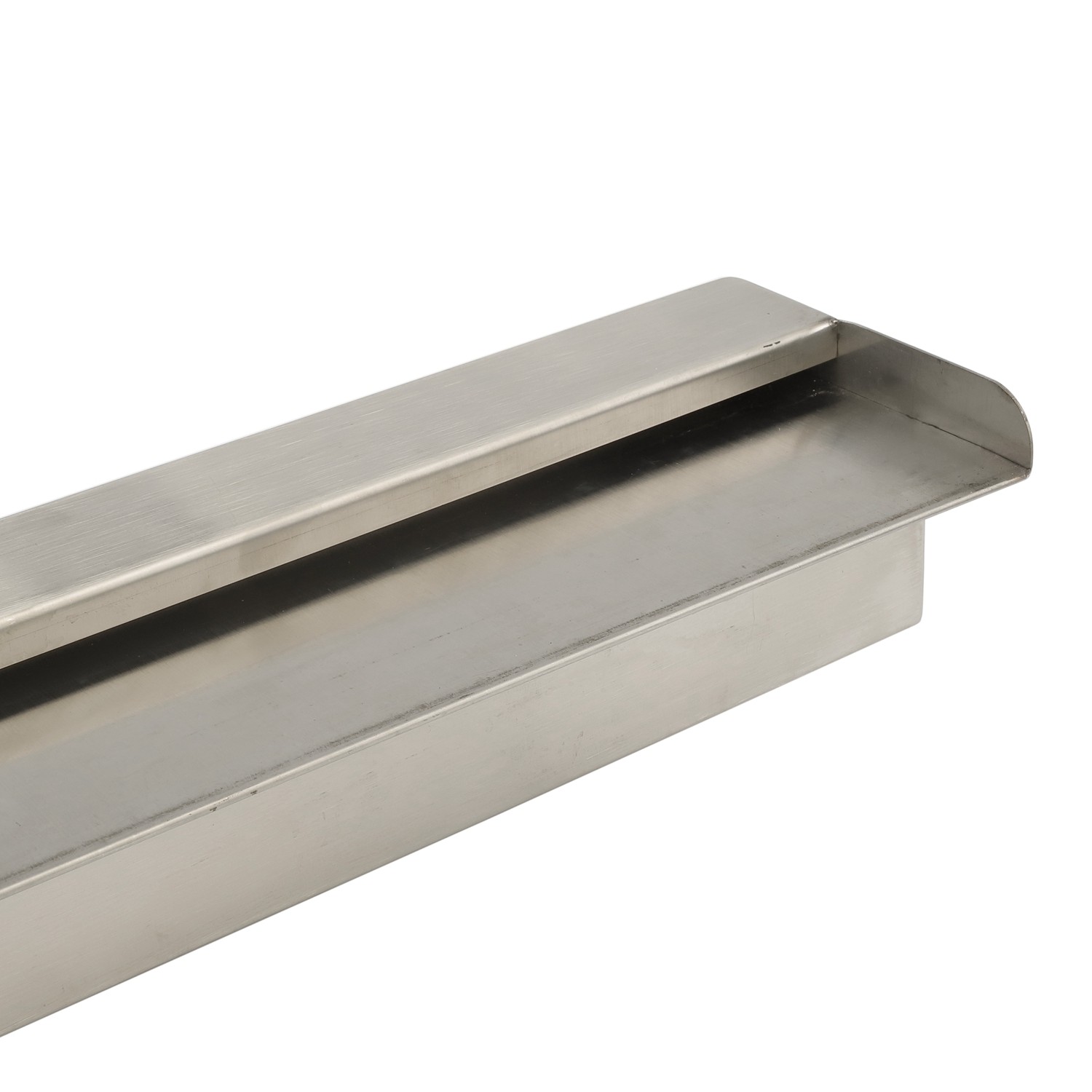

The rectangular stainless steel water feature—also known in the industry as a stainless steel spillway or waterfall outlet—is a widely used linear water feature for swimming pools, villa gardens, and hotel landscapes. It produces a smooth, continuous sheet of water resembling a pane of glass, ensuring a steady flow without any breaks.
Product Highlight of Pool Waterfall
1. Integrated Bending & Full-Welding Process: Ensures uniform water distribution within the internal chamber and a smooth, continuous sheet of water flow—eliminating flow interruptions or splashing.
2. Corrosion Resistance: The 316-grade model is suitable for saltwater/chlorine pools and seaside resorts; it resists chlorine and salt spray, ensuring a long service life.
3. Modern Minimalist Design: A sleek, rectangular profile that complements villas, high-end hotels, resort pools, and ornamental ponds.
4. Easy Installation: Designed for embedding into feature walls or pool edges; simply connect to a circulation pump. Supports pre-embedded installation.
5. Low-Maintenance Surface: The stainless steel finish is easy to clean and resistant to algae buildup and rust.
6. Customizable Options: Tailorable length, thickness, inlet position, and color; available with or without lighting. OEM/ODM services supported; small-batch orders accepted.
Key Specifications
- Material: 304 stainless steel (standard); 316L stainless steel recommended for saltwater/chlorine pools and coastal installations (chlorine and seawater corrosion-resistant); integrated welded construction with brushed finish and full-seam welding to prevent leakage.
- Standard Dimensions: Lengths of 30cm, 60cm, 90cm, 120cm, 150cm, and 200cm (custom lengths up to 3m+ available); depth 10–15cm; height 7–10cm.
- Water Inlet: Bottom inlet; standard PVC connection (DN32, DN40, or DN50 options).
- Optional Lighting: Built-in low-voltage RGB LED strip; app-controlled color changing for atmospheric night-time water features; IP68 waterproof rating.
- Surface Finish: Mirror polish / Brushed silver / Black powder-coated (Black Titanium).
FAQ
Q1: Is the material 304 or 316L? Which one should I use for seaside locations or saltwater pools?
A: The standard model is made of 304 stainless steel; however, 316L is highly recommended for saltwater pools, seaside locations, and islands with high salt-spray exposure. 316L offers superior resistance to chloride ion corrosion and salt spray, making it suitable for seawater and saltwater chlorination systems. 304 is suitable for standard freshwater pools and garden ponds, offering better cost-effectiveness.
Q2: What flow rate pump do I need for Swimming Pool Waterfall?
A: The required flow rate increases with the length of the unit. Reference examples:
60cm ≈ 4–6 m³/h; 120cm ≈ 8–12 m³/h; 200cm ≈ 15–20 m³/h.
We can provide a comprehensive flow rate chart and recommend a pump based on the specific waterfall length and desired water curtain effect.
Q3: Is the water inlet at the bottom or the back? What are the connection specifications?
A: The standard configuration features a bottom inlet with a PVC flange connection (available in DN32, DN40, or DN50 sizes). The inlet position can be customized upon request.
Q4: Do I need to purchase the pump separately? Do you supply matching pumps?
A: The waterfall unit itself does not include a pump. We can recommend suitable pump models and supply them as part of the package.
Q5: What is the voltage of the LED light strip? Is it safe?
A: The lighting version uses 12V low-voltage LEDs with an IP68 waterproof rating, ensuring safety for use in pool water features. A transformer is required for 220V power connections.
