Product features:
1. Energy saving and low carbon, high electric energy conversion rate, safety, energy saving and environmental protection.
2. Simple installation, exquisite structure, small occupied space, integrated waterproof seal and replaceable electrodes.
3. Ultra-low cost operation, low salt disinfection, reducing the corrosion of other parts, the SPA pool can achieve disinfection effect.
4. Maintenance-free automatic pole changing for 2 hours, achieving self-cleaning function and prolonging electrode life.

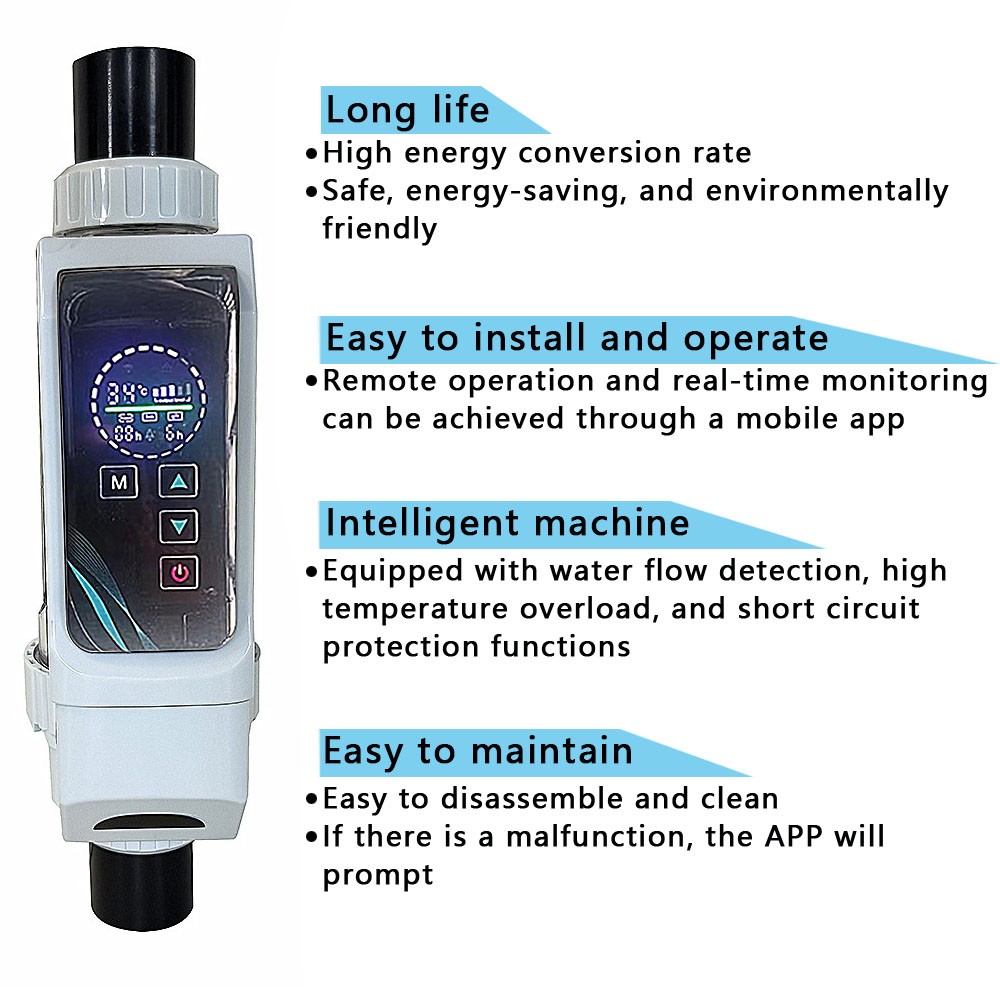

5. Intelligent detection and protection, LED working status indication, with overload and short circuit protection functions to ensure safe service life.
6. Safe disinfection without odor, caring for human skin.
7. Add 1-3kg of salt to 1m water. If the water is not changed or the indicator light does not show abnormal low salt, it is unnecessary to add salt (see the instruction manual for details).
8. Installation hole size: 82; Size of circulating water nozzle: external connection: 20.5; Internal connection: 27 (see instructionsfor details)
| | | | Inlet and outlet diameter (inch) | | |
EQ8 | AC 110~240V | DC24V | 8g/hr | 1.5"/50mm | ≤40m³ | 430×122×152 |
EQ12 | AC 110~240V | DC24V | 12g/hr | 1.5"/50mm | ≤60m³ | 430×122×152 |
EQ16 | AC 110~240V | DC24V | 16g/hr | 1.5"/50mm | ≤80m³ | 430×122×152 |
EQ20 | AC 110~240V | DC24V | 20g/hr | 1.5"/50mm | ≤100m³ | 430×122×152 |
EQ24 | AC 110~240V | DC24V | 24g/hr | 1.5"/50mm | ≤120m³ | 430×122×152 |
EQ28 | AC 110~240V | DC24V | 28g/hr | 1.5"/50mm | ≤140m³ | 430×122×152 |
EQ32 | AC 110~240V | DC24V | 32g/hr | 1.5"/50mm | ≤160m³ | 430×122×152 |
